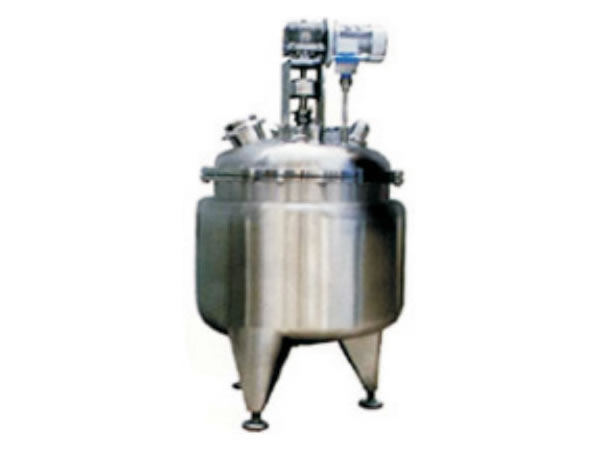

The steam heating reactor is composed of kettle body, kettle cover, jacket, stirrer, transmission device, shaft sealing device, support, and other components. It is made of stainless steel, such as 0Cr18Ni9(304),1Cr18Ni9Ti(321), and 00Cr17Ni14Mo2(316L). According to the different production processes and operation conditions, there are several types of stirrers for customers to choose, such as anchor type, paddle type, turbine type, frame type, propelled type, etc. Packing seal or mechanical seal can be adopted. When the rotate speed exceeds 160rpm, a gear reducer should be used. In addition, we can design and produce products as per customers' requirements.
Parameter OneModel | Nominal Capacity L | Actual Capacity L | Heating Power kw*qty. | Capacity of the Oil Jacket L | Size of the Inner Pot Dmm | Size of the Jacket D1mm | Size of the Bearing Screw Hole D2mm | Expander Capacity L | n-d |
50L | 50 | 78 | 2×4 | 96 | Ø400 | Ø600 | Ø828 | 10 | 4-25 |
100L | 100 | 127 | 2×6 | 127 | Ø500 | Ø700 | Ø928 | 15 | 4-25 |
300L | 300 | 327 | 4×6 | 218 | Ø800 | Ø1000 | Ø1148 | 20 | 4-25 |
500L | 500 | 509 | 4×9 | 269 | Ø900 | Ø1100 | Ø1252 | 25 | 4-25 |
1000L | 1000 | 1017 | 4×12 | 400 | Ø1200 | Ø1400 | Ø1588 | 40 | 4-30 |
2000L | 2000 | 2154 | 4×15 | 850 | Ø1400 | Ø1600 | Ø1840 | 80 | 4-30 |
3000L | 3000 | 3201 | 5×15 | 1015 | Ø1600 | Ø1750 | Ø2040 | 100 | 4-35 |
4000L | 4000 | 4020 | 5×15 | 1226 | Ø1600 | Ø1750 | Ø2070 | 120 | 4-36 |
5000L | 5000 | 5170 | 5×18 | 1400 | Ø1800 | Ø2000 | Ø2320 | 140 | 4-36 |
Model | H mm | H1 mm | H2 mm | H3 mm | H4 mm | Speed Reducer | Rotate Speed/Speed Ratio | Speed Ratio/Speed Ratio | Motor Power | Weight kg |
50L | 1550 | 255 | 406 | 125 | 310 | XLD3-i-1.1 | 85/17 | 63/23 | 1.1 | 270 |
100L | 1690 | 200 | 560 | 150 | 330 | XLD3-i-1.1 | 85/17 | 63/23 | 1.1 | 340 |
300L | 1910 | 280 | 590 | 225 | 440 | XLD4-i-2.2 | 85/17 | 63/23 | 2.2 | 700 |
500L | 2320 | 340 | 725 | 250 | 440 | XLD4-i-3 | 85/17 | 63/23 | 3 | 930 |
1000L | 2650 | 360 | 780 | 325 | 530 | XLD4-i-4 | 85/17 | 63/23 | 4 | 1610 |
2000L | 3200 | 400 | 1200 | 375 | 630 | XLD5-i-5.5 | 85/17 | 63/23 | 5.5 | 2010 |
3000L | 3390 | 450 | 1310 | 425 | 690 | XLD6-i-7.5 | 85/17 | 63/23 | 7.5 | 2590 |
4000L | 3976 | 450 | 1760 | 425 | 690 | XLD6-i-7.5 | 85/17 | 63/23 | 7.5 | 3160 |
5000L | 4150 | 480 | 1760 | 475 | 690 | XLD6-i-7.5 | 85/17 | 63/23 | 7.5 | 4000 |
As an experienced steam heating reactor manufacturer and supplier in China, Miyou Group provides a broad range of products, including stainless steel reactor, agitated bead mill, rotary valve, Reactor Using Mechanical Seal, and more.
